Introduction and application of pet alloy sheet
金韦尔机械研发的PET合金片材生产线采用的原料主要来自于废旧衣物、化纤纺织废料等，加入其它助剂配方经熔融塑化挤出做成PET吸塑片材。原料成本为普通PET的1/5价格，制品主要应用于玩具吸塑、门板成型、箱包、工业模型等非食品领域。具有成本极低、利润丰厚、制品韧性高等特点。从分散相粒径及其大小分布，可以看出单螺杆与双螺杆挤出的区别，左图为单螺杆主机，右图为平双主机
The raw materials used in the pet alloy sheet production line developed by gwell machinery mainly come from waste clothes, chemical fiber textile waste, etc., which are added with other additives and extruded into pet blister sheet by melt plasticization. The raw material cost is 1 / 5 of the price of ordinary pet. The products are mainly used in non food fields such as toy blister, door panel molding, luggage, industrial model and so on. It has the characteristics of very low cost, rich profit and high product toughness.
The difference between single screw and twin-screw extrusion can be seen from the particle size and size distribution of dispersed phase. The left figure shows single screw host and the right figure shows flat twin-screw host
预混单螺杆挤出PET合金 平行双螺杆挤出PET合金
Single screw extrusion pet alloy Parallel twin screw extrusion of pet alloy
PET合金的电镜照片，其中大块的是pet基材，小点是PC或其他材料。从电镜中可以看到，小料分散非常均匀，分散相小于1微米，已经完全融入基材，所以韧性和强度才会大幅提高。

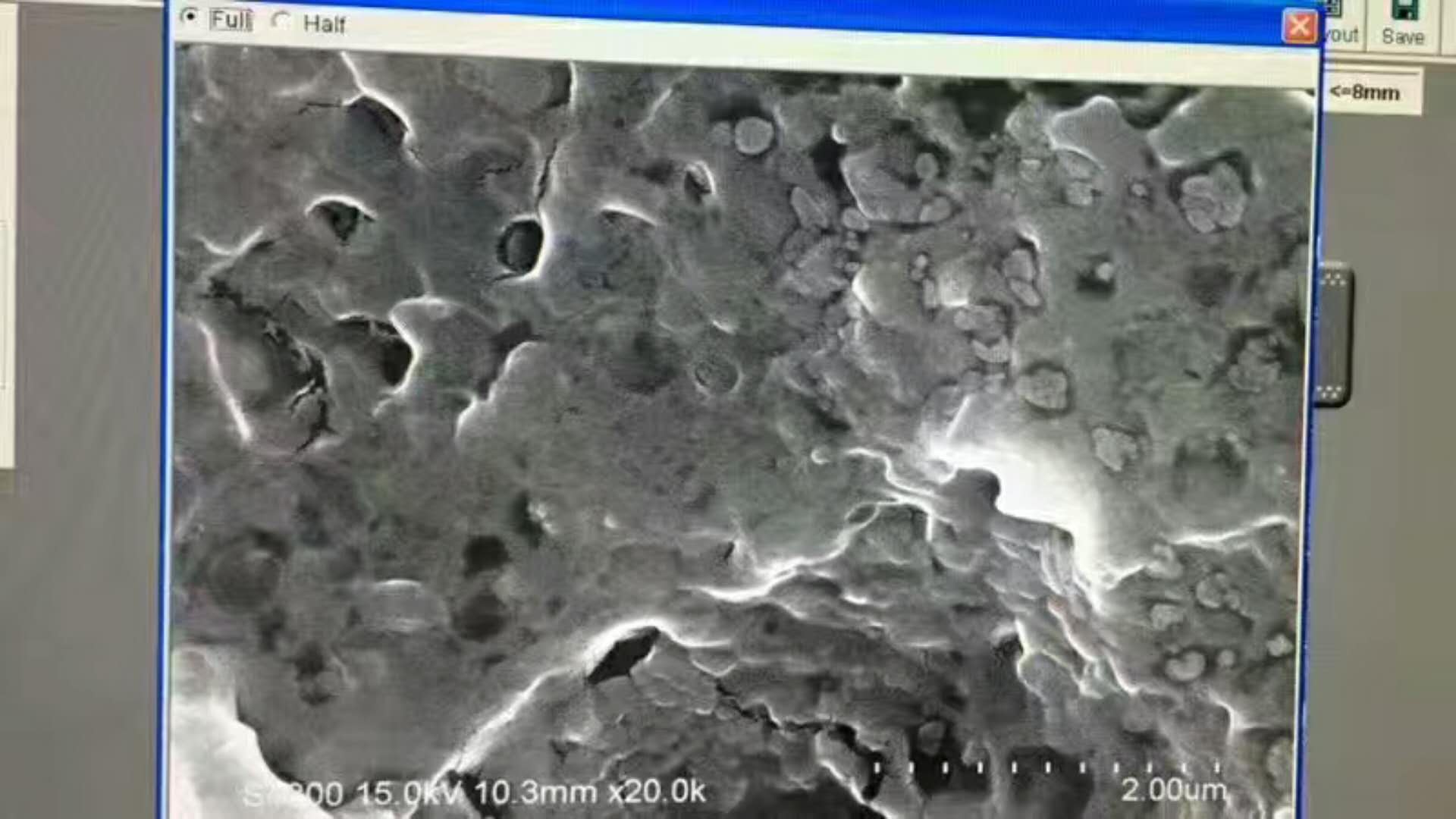

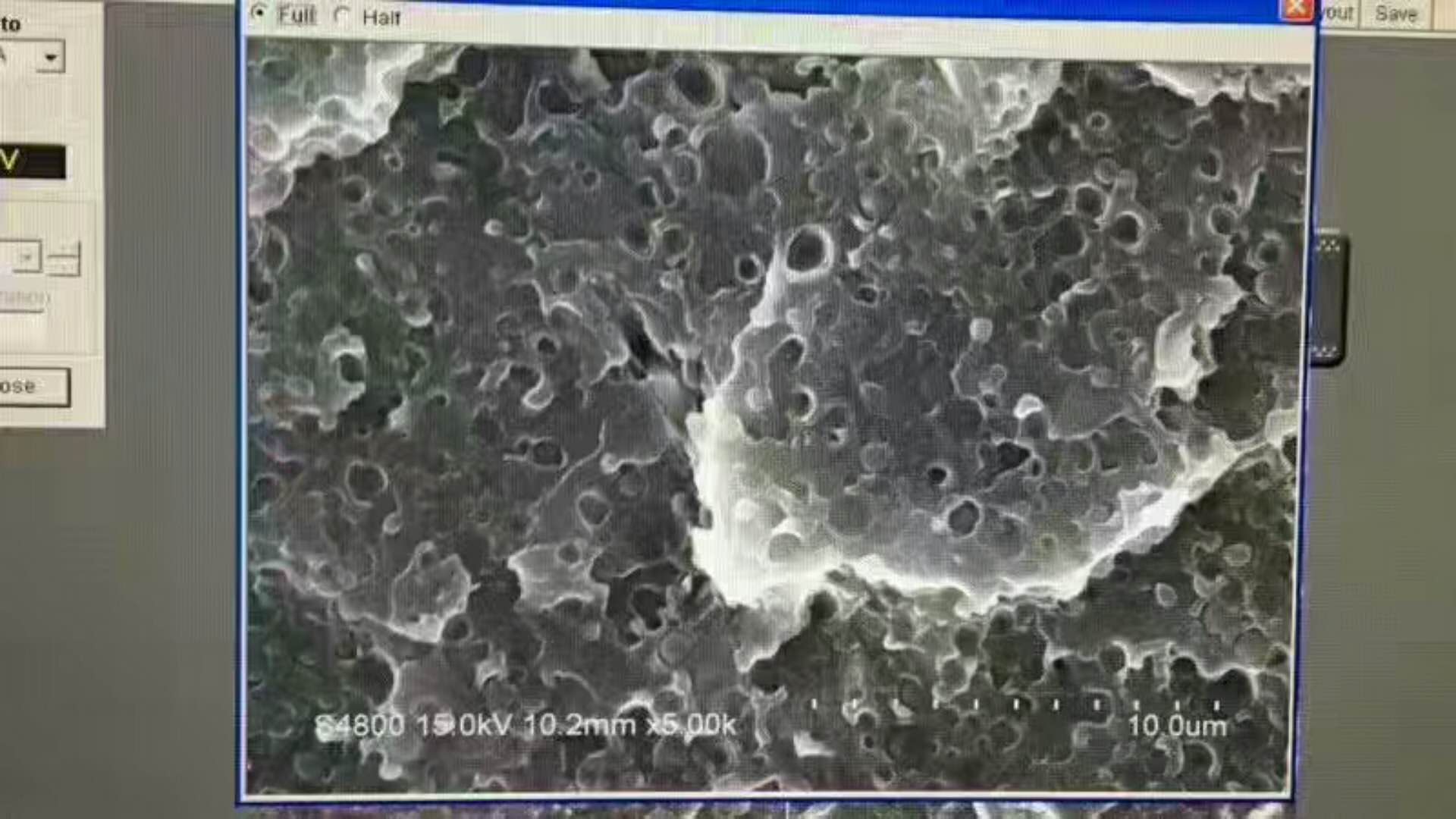

Electron micrograph of pet alloy, in which the large part is pet substrate and the small point is PC or other materials. It can be seen from the electron microscope that the small material is dispersed very evenly, the dispersed phase is less than 1 micron, and has been fully integrated into the substrate, so the toughness and strength will be greatly improved.
金韦尔PET合金片材挤出生产线及PET合金片材的应用

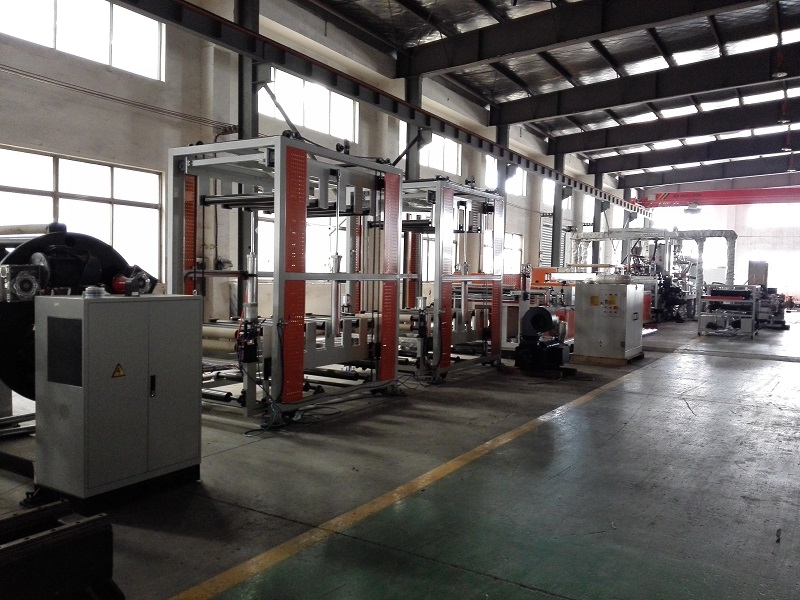

Gwell pet alloy sheet extrusion production line and application of pet alloy sheet
