TPU Film Extrusion Line

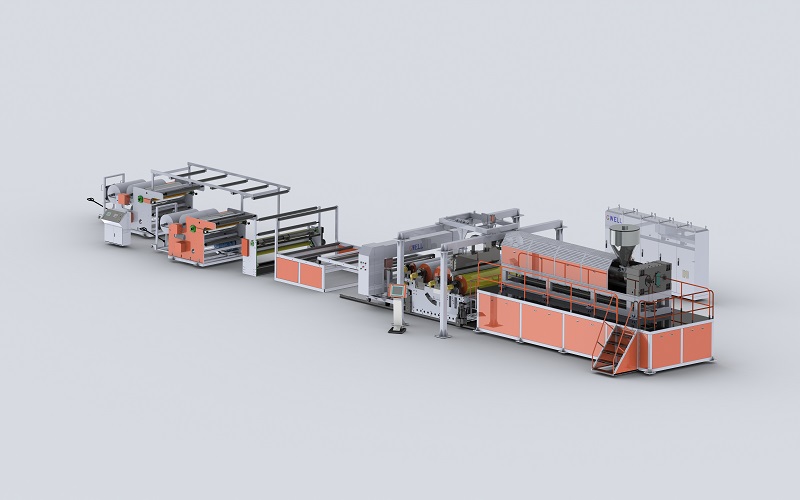

Introduction of TPU cast film production machine

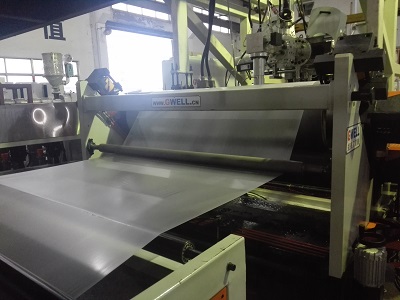

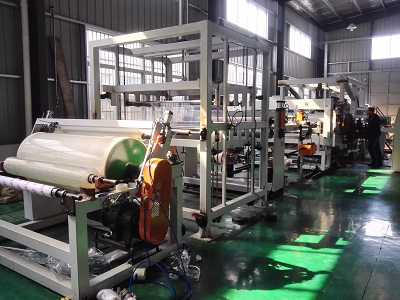

TPU (Thermoplasticpolyurethanes), hot plasticity TPU elastomer, TPU film is on the basis of the TPU granular material, through the flow process made into film. Gwell machinery TPU film production line has been combined with the group's years of equipment manufacturing experience, and at the same time learned from the production experience of many polyurethane TPU manufacturers, to adapt to the market continuous improvement, innovation and gradually reach the industry position. The equipment produces TPU with a width of 1372-1520mm and a thickness of 0.02-3.0mm. One or more single screw extruders can be used for co-extrusion. Each extruder is divided into 8 temperature control zones for accurate temperature control. Maximum output up to 600KG/H, single-layer, A/B/A or A/B distribution mode. It can meet the upper and lower two layers at the same time covered from the membrane, attached cloth. By adopting PLC overall control, only one person can easily control. Key parts disassembly and replacement is convenient, user-friendly. Reserved remote control port can be global remote to achieve synchronous monitoring, which is high cost performance. Products with high transparency, less crystal point, no air bubble.
Introduction and use of TPU cast film
TPU film not only has excellent tension, toughness and aging resistance, and is a mature environmental protection material. At present, TPU has been widely used in: shoes, clothing, inflatable toys, water and underwater sports equipment, medical equipment, fitness equipment, car chair materials, umbrellas, leather cases, bags, car clothes coated. Water-proof and moisture-permeable TPU film is used with various fabrics to achieve water-proof and moisture-permeable effect.
| Type of machine | Single screw GWS90 | Single screw GWS120 | Single screw GWS150 |
| Product structure | Single layer and multilayer | Single layer and multilayer | Single layer and multilayer |
| Product thickness | 0.02mm - 2mm | 0.02mm - 3mm | 1mm - 5mm |
| Product width | 1300mm - 1600mm | 1300mm - 1600mm | 1300mm - 2000mm |
| Output | 150KG/H - 180KG/H | 250KG/H - 300KG/H | 350KG/H - 500KG/H |
