LVT Flooring Extrusion Line
Views: Date:2018-04-02

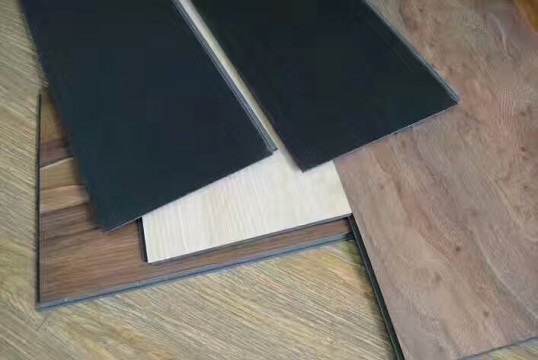

LVT (Luxury Vinyl Tile) is another name for PVC sheet flooring.
        In 2013, Gwell successfully developed LVT floor extrusion lamination production line, and realized one-time lamination of WPC floor laminating materials, which improved production line efficiency and quality stability. It has been exported to some countries in Europe and America. Because its design and color are rich, it is popular to be used at home outfit and commercial domain.

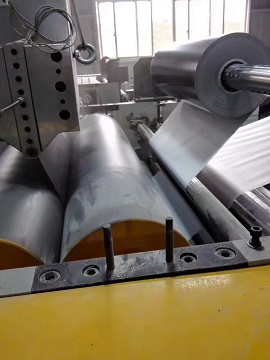

        LVT extrusion production process: floor materials such as PVC plasticizer, calcium powder, mixed by high speed mixer mixing and delivered by rotating conveyor to the conical twin-screw extruder, then extuded by T die and attach the wear-resisting layer and printing layer to the product with specified thickness. Extrusion laminating process can replace the traditional rolling, laminated and complex process. It is easy to operate,  has low investment cost, and can reduce the labor intensity of workers. Also it can keep workshop clean, and the production line will adopt optical sensor detection and alarm, so it has a high degree of automation.

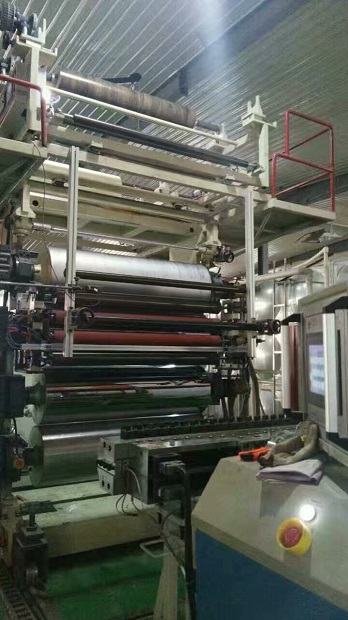

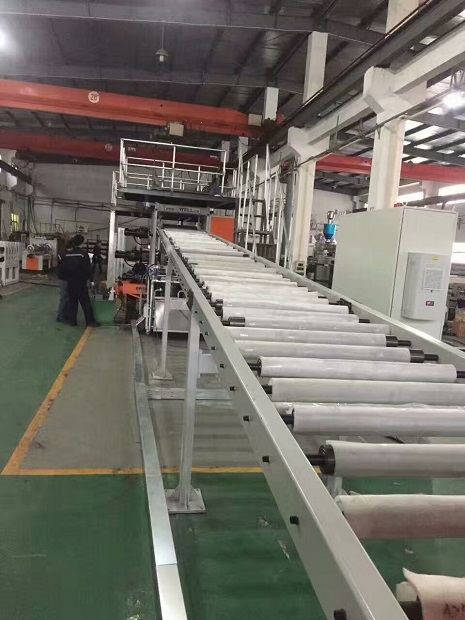

LVT Plastic Floor Extrusion Line(Please consult the sales engineer for details)
TYPE Conical twin-screwGWC80/156 Conical twin-screwGWC92/188 Parallel twin-screw GWP75/36
Width of product 1000mm 1000mm 1000mm
Product thickness 1.5mm - 2mm 2mm - 5mm 1.5mm - 5mm
output 350KG/H - 400KG/H 550KG/H - 650KG/H 400KG/H - 500KG/H
