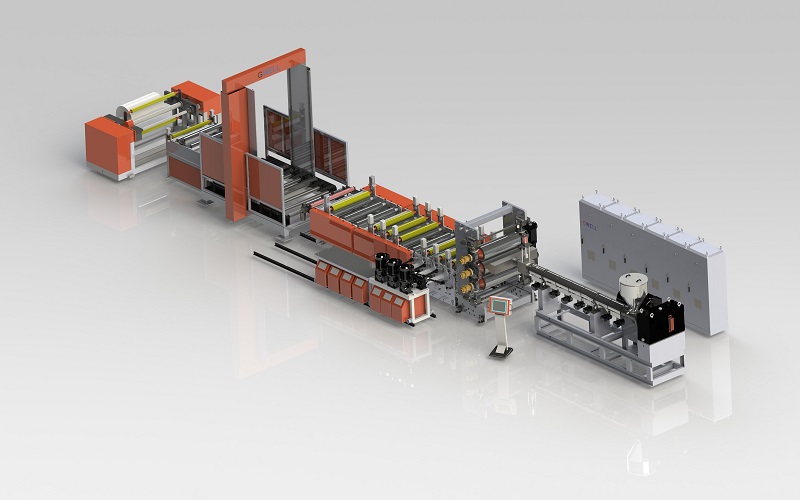

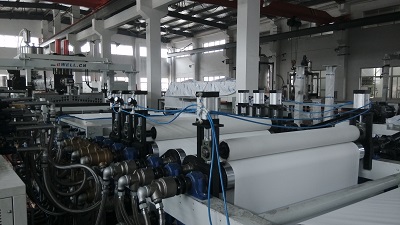

MDO Longitudinal Stretching Film Extrusion Line
Raw material used in MDO longitudinal stretch production line: PET, PP, PE, PVDF and other materials. Products used in: electronic packaging, food packaging, drug packaging, hardware packaging, high-grade light box cloth, toy boxes, stationery boxes, gift boxes, decorative materials and industrial anti-corrosion protection.
Gwell longitudinal stretch production line is divided into: PET longitudinal stretch production line; PP longitudinal stretch production line; PE longitudinal stretch production line; Unidirectional stretch production line for special materials; PVDF unidirectional stretch production line.
The equipment adopts single or multiple extruders co-extrusion technology, equipped with precision distributor. The product can be layered evenly, and each layer can be adjusted ; Horizontal, vertical or oblique plate structure is easy to operate and maintain; Independent roller power, linear speed and extruder speed can be synchronously controlled; The whole machine adopts PLC control to realize automatic control of parameter setting, data operation, feedback, alarm and other functions.
MDO Longitudinal Stretching Film Extrusion Line(Please consult the sales engineer for details）
| Type | Single screw GWS | Parallel twin-screw GWP | Conical twin-screw GWCP |
| Raw material | PET、PP、PE、PVDF | PET、PP、PE、PVDF | PP、PE、PVDF、PVC |
| Stretching methods | MDO longitudinal stretch unit | MDO longitudinal stretch unit | MDO longitudinal stretch unit |
| Structure of product | A； A/B；A/B/A | A； A/B；A/B/A | A； A/B；A/B/A |
| Stretch ratio | 2-20，3-30，5-50 | 2-20，3-30，5-50 | 2-20，3-30，5-50 |
| Max linear speed | 100m/min | 100m/min | 100m/min |
