TPO Waterproof Coil Extrusion Line
Views: Date:2018-03-27

Application: TPO waterproof coil production line is a new waterproof coil made of thermoplastic polyolefin with antioxidant, anti-aging agent, softener, etc., with polyurethane mesh reinforcement layer in the middle and fabric fiber and aluminum film on the surface. TPO waterproof coil has excellent weather resistance and flexibility. Mainly used for all kinds of roofing, basement, tunnel and other building waterproof engineering.
         Gwell TPO waterproof coil production line is a special TPO machine developed by our company based on many years' production experience of our customers. The design concept and technical content are of guiding significance to the industry. The production is stable, with high output, low defect rate and easy operation. It can meet the production of homogeneous coil (H type), fiber backing coil (L type), fabric reinforced coil (P type). The production line is simple in structure and easy to operate. Different equipment components can be configured according to customers' requirements to produce single-layer and multi-layer composite products. It can also be added winding device, and produce internal enhancement products or surface composite non-woven products.

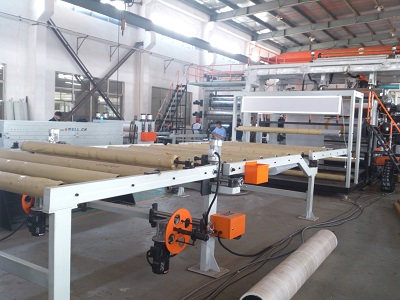

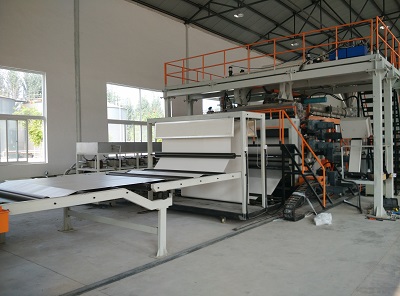

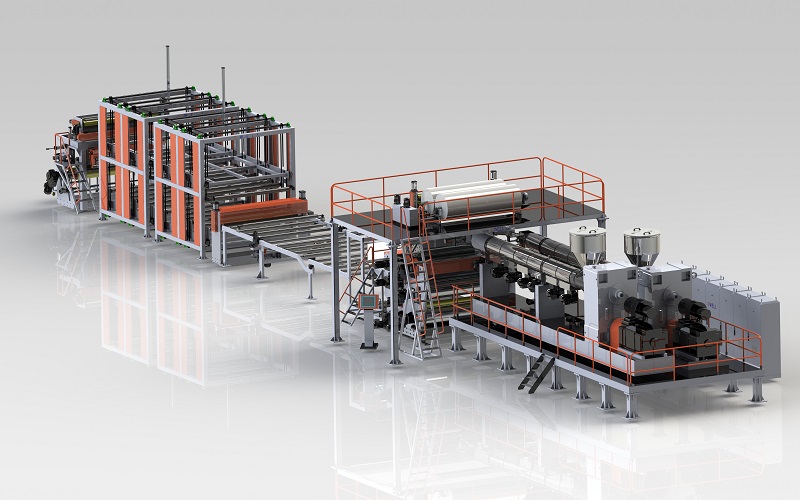

TPO Waterproof Coil Extrusion Line
Type twin-screw GWP75/GWP75 Single screw GWS130/GWS130 twin-screw GWP95/GWP95
Structure of product TPO;TPO-NET-TPO;NET-TPO-NET
Width of product 2100mm 2100mm 2100mm
Thickness of product 1mm - 3mm 1mm - 3mm 1mm - 3mm
Output 1000KG/H 1000KG/H 1300KG/H
Line speed 10m/min  10m/min 15m/min
