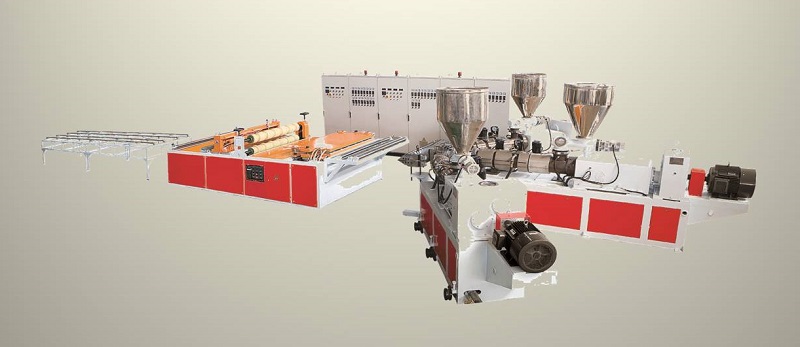

PC,PP,PVC Wavy Board, Corrugated Board, Glazed Tile Extrusion Line
PC, PP, PE, PVC, ASA wave board, corrugated board, glazed tile, hollow tile production line equipment features:

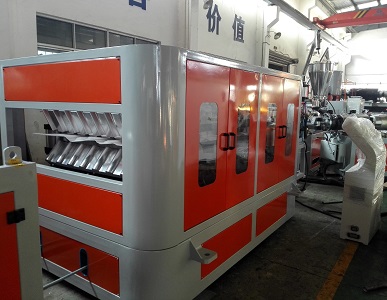

Hanger-type flat machine head with pneumatic open and close calibration unit, flexible and safe lifting mechanism make the formation more reliable and thickness adjustment more convenient; Adopting the rubber traction roller consistent with the waveform, make the traction more stable. Convenient and fast roller distance adjustment device has the field handling capacity of various situations; Carefully designed cutting method, oblique blade automatic cutting, make the incision more orderly, and it can cut automatically as needed, which is highlighting the people-oriented design concept.
Characteristics and application of PVC corrugated tile, corrugated board, glazed tile and hollow composite tile:

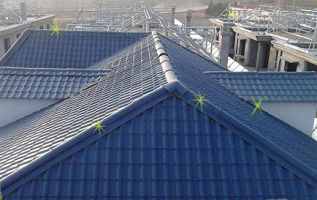

Excellent fire resistance performance, it is a refractory material, no spontaneous combustion, anti-chemical corrosion, acid and alkali resistance, fast heat dissipation, excellent lighting performance, long life; Adopting special technical formula, ASA can be co-squeezed, so the product can be resistant to outdoor atmospheric exposure, and it has good heat insulation performance, which can provide a more comfortable environment than metal tile in hot summer; Wide range of application: factory building, warehouse, car shed, farmers market, coaming, wall body, temporary shops, insulation shed, etc
PC corrugated board, corrugated board, daylight tile:
The main raw material is the polycarbonate (PC) , and the product is added with anti-uv agent UV and other chemical raw materials, by using modern advanced technology. The product has excellent stability, not easy to yellowing, deterioration. In the ultraviolet spectrum range (290-400nm), it has a high absorption of strong ultraviolet. And the experiment proved that up to 99.9% uv can be effectively isolated. It is widely used in building capping, patio, carport, balcony, canopy, screen, pavilion and swimming pool etc.
PP, PE wave plate:
At present, there are dozens of patterns such as straight ripple, water ripple, surf pattern, gold nail pattern, textile pattern and snow pattern. As to the surface effect, the products have pure white board, gold and silver paste, pearlescent board, starlight board, crackle paint board and imitation stone board.
| Type | Conical twin screwGWC65/132-GWC80/156-GWC65/132 | Single screwGWS120-GWS65 | Single screwGWS120 |
| Raw Material | PVC、ASA | PC、ASA | PP、PE |
| Structure of Product | A/B/C；A/B/A；A/B；A | A/B/A；A/B；A | A |
| Wave Shape of Product | Wave; corrugated; scale; hollow corrugated, etc | Wave; corrugated; scale; hollow corrugated, etc | Wave; corrugated; scale; hollow corrugated, etc |
| Thickness of Product | 0.8mm - 3mm | 0.6mm - 1.5mm | 0.5mm - 3mm |
| Width of Product | 1200mm | 1400mm | 1050mm |
| Output | 300KG/H - 350KG/H | 350KG/H - 400KG/H | 300KG/H - 400KG/H |
